Automatic CNC Milling Machine for Aluminum Profile
This is a high-precision CNC milling machine designed for efficient drilling, milling, and engraving of aluminum profiles.
Automatic CNC Milling Machine for Aluminum Profile Features
The Automatic CNC Milling Machine for Aluminum Profiles is a versatile and high-precision solution for processing aluminum alloy profiles. It is capable of drilling, slot milling, circular and irregular hole processing, as well as flat surface engraving. The system features a CNC three-axis servo-driven system, ensuring high-speed, accurate positioning for precise machining tasks. Equipped with specialized automatic clamps and an automatic positioning plate system, the machine offers reliable and efficient operation.
The milling motor uses an imported high-speed electric spindle, providing exceptional accuracy, speed, safety, and reliability. The X-axis transmission employs high-precision helical gears and racks, while the Y and Z axes utilize high-precision ball screw drives for smooth and precise motion. Additionally, the machine is equipped with an automatic tool-changing mechanism and a tool-length detection system, enabling seamless multi-tool machining.
With the ability to automatically convert processing G-code through programming software, the machine simplifies operation, improves efficiency, and reduces labor intensity. Its compact design minimizes space requirements, making it an ideal choice for modern aluminum profile machining.
Automatic CNC Milling Machine for Aluminum Profile Parameters
Cutting
| X-axis Range | 1500mm |
| Y-axis Range | 300mm |
| Z-axis Range | 280mm |
| Processing Angle | +90°~0°~-90° |
| Milling Size | ER32-Ф8 |
| Working Area (W×H×L) | 150×150×1500mm |
Power
| X-axis Servo Power | 0.75kW |
| Y-axis Servo Power | 0.75kW |
| Z-axis Servo Power | 0.75kW |
| Milling/Drilling Spindle Power | 3.7kW/2.2kW |
| Air Pressure | 0.6~0.8MPa |
| Input Voltage | 380V/50Hz |
| Total Power | 6.5kW |
Machine
| Spindle Speed | 0~18000r/min |
| Machine Size | 1800×1600×1950mm |
| Machine Weight | 900kg |
Automatic CNC Milling Machine for Aluminum Profile Details

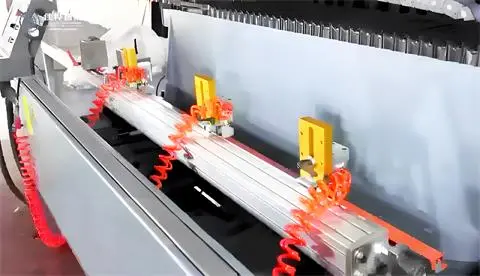

Servo Flipping System

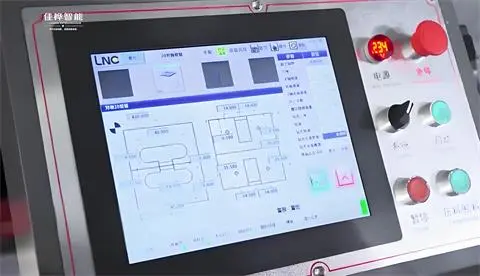

CNC Control Console

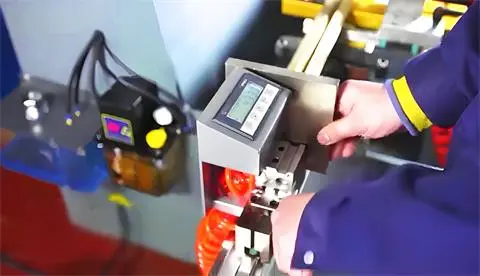

Digital Positioning System

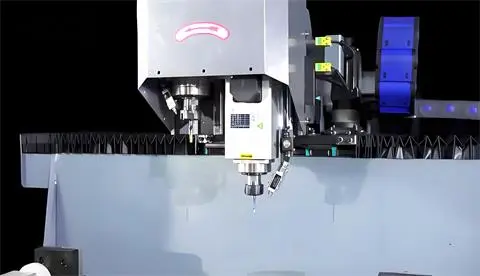

Dual-Head Drilling and Milling System

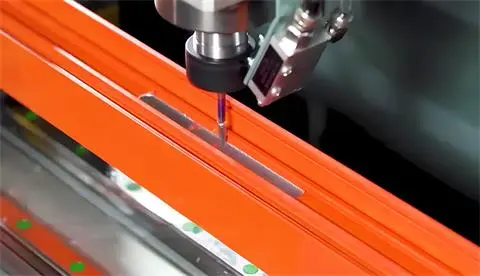

Hole Milling Processing
