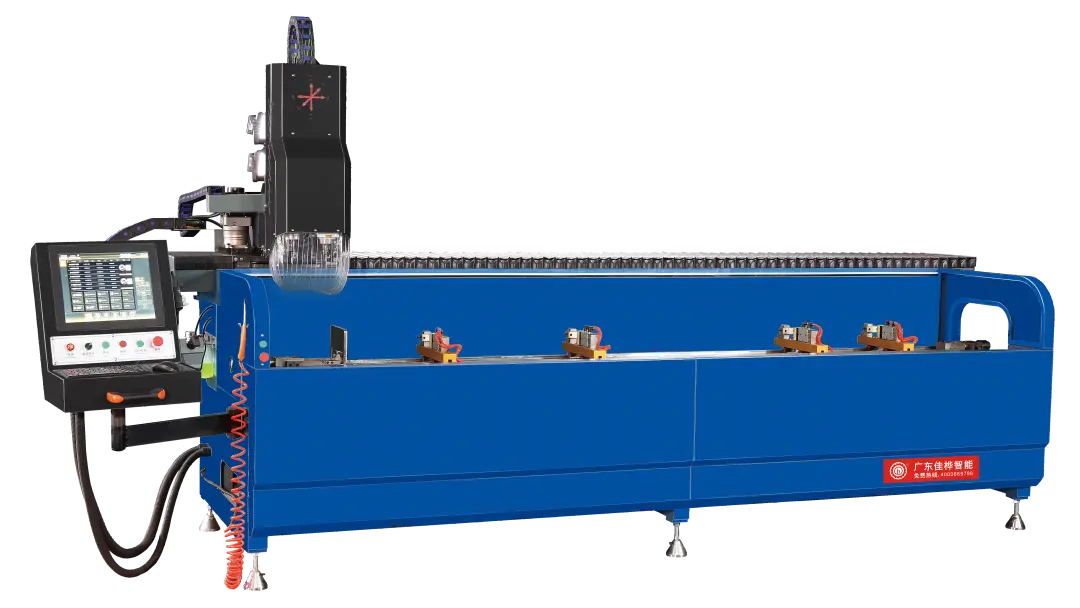

Automatic Four-axis CNC Milling Machine for Aluminum Profile (Dual-motor Servo-flippable)
This is an advanced four-axis CNC milling machine designed for high-precision, efficient, and automated drilling and milling of aluminum profiles.
Automatic Four-axis CNC Milling Machine for Aluminum Profile (Dual-motor Servo-flippable) Features
The Automatic Four-Axis CNC Milling Machine for Aluminum Profiles is a highly advanced and versatile solution designed for flat drilling and milling operations on various aluminum profiles. Equipped with a four-axis CNC system, it ensures high-speed and high-precision positioning for efficient and accurate machining. The machine features dedicated fixtures for reliable and convenient clamping, as well as an automatic positioning plate system that allows for one-time tool setup, enabling seamless batch processing.

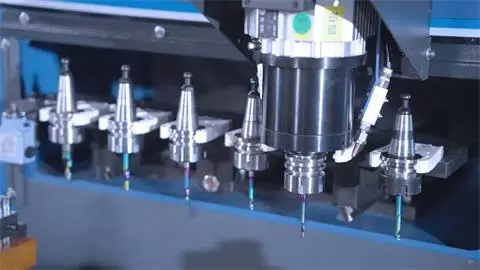

With a compact design that saves floor space, the machine incorporates high-quality imported cutting tools, offering fast milling speeds and excellent surface finishes. It is equipped with an automatic tool-changing mechanism and a tool-length detection system, supporting the combined use of multiple tools for complex machining tasks. Additionally, the dual-motor servo flipping system enables automatic profile flipping and precise hole milling, further enhancing its functionality.
The user-friendly interface supports graphic input for programming, making the machine easy to operate while ensuring reliable performance. This equipment is a compact, efficient, and intelligent solution for modern aluminum profile machining needs.
Automatic Four-axis CNC Milling Machine for Aluminum Profile (Dual-motor Servo-flippable) Parameters
Cutting
| X-axis Range | 3200mm |
| Y-axis Range | 370mm |
| Z-axis Range | 350mm |
| Processing Angle | +90°~0°~-90° |
| Milling Size | ER32-Ф8 |
| Drilling Size | ER25-Ф5 |
Power
| X-axis Servo Power | 1.5kW |
| Y-axis Servo Power | 1.0kW |
| Z-axis Servo Power | 0.75kW |
| Milling/Drilling Spindle Power | 7.5kW/3kW |
| Air Pressure | 0.6~0.8MPa |
| Input Voltage | 380V/50Hz |
| Total Power | 13.75kW |
Machine
| Working Area (W×H×L) | 150×150×3200mm |
| Spindle Speed | 0~18000r/min |
| Machine Size | 4000×1600×2000mm |
| Machine Weight | 2000kg |
Automatic Four-axis CNC Milling Machine for Aluminum Profile (Dual-motor Servo-flippable) Details

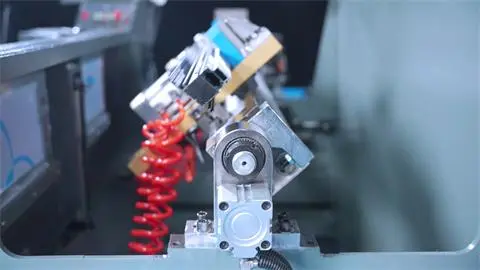

Dual-Motor Servo Flipping System

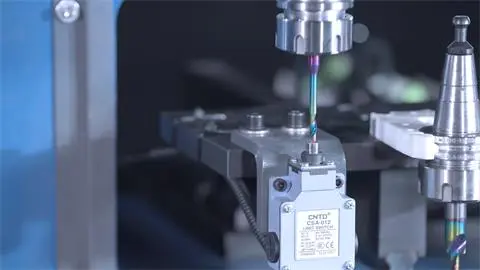

Four-Axis Drilling and Milling Head
QR Code Production

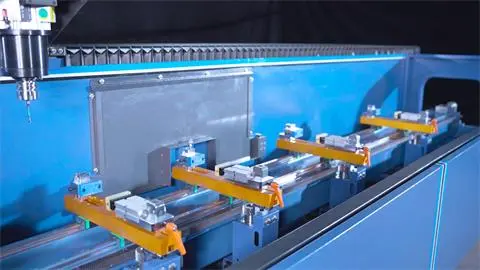

Material Pressing System
Intelligent Control Panel
