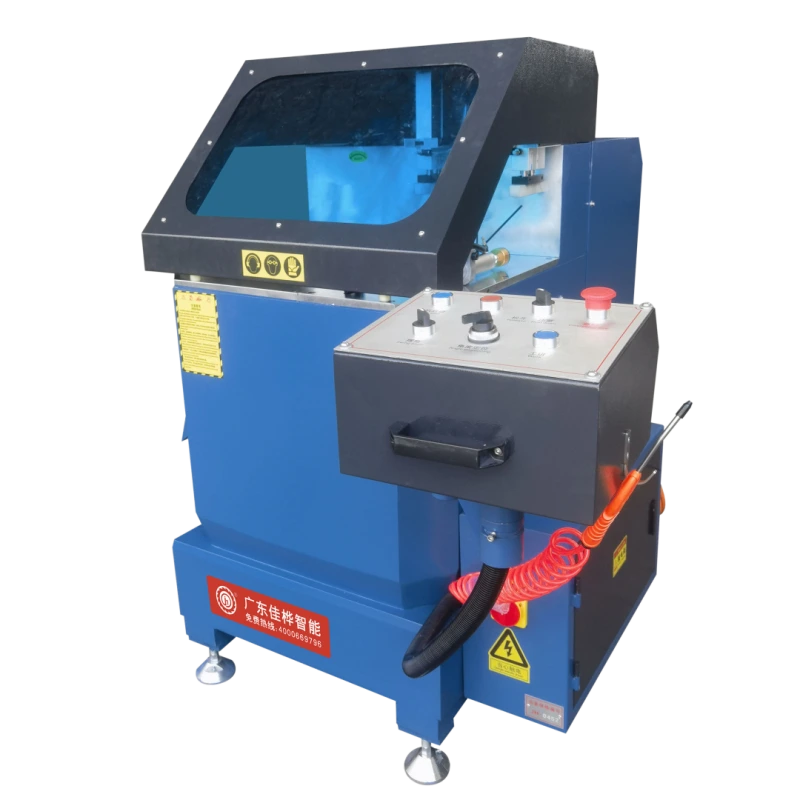

Heavy-duty Single Head Aluminium Cutting Machine
Heavy-duty Single Head Aluminium Cutting Machine Features
Featuring advanced carbide tools and precision engineering, this machine ensures smooth and accurate cuts, making it ideal for a wide range of profile processing needs.

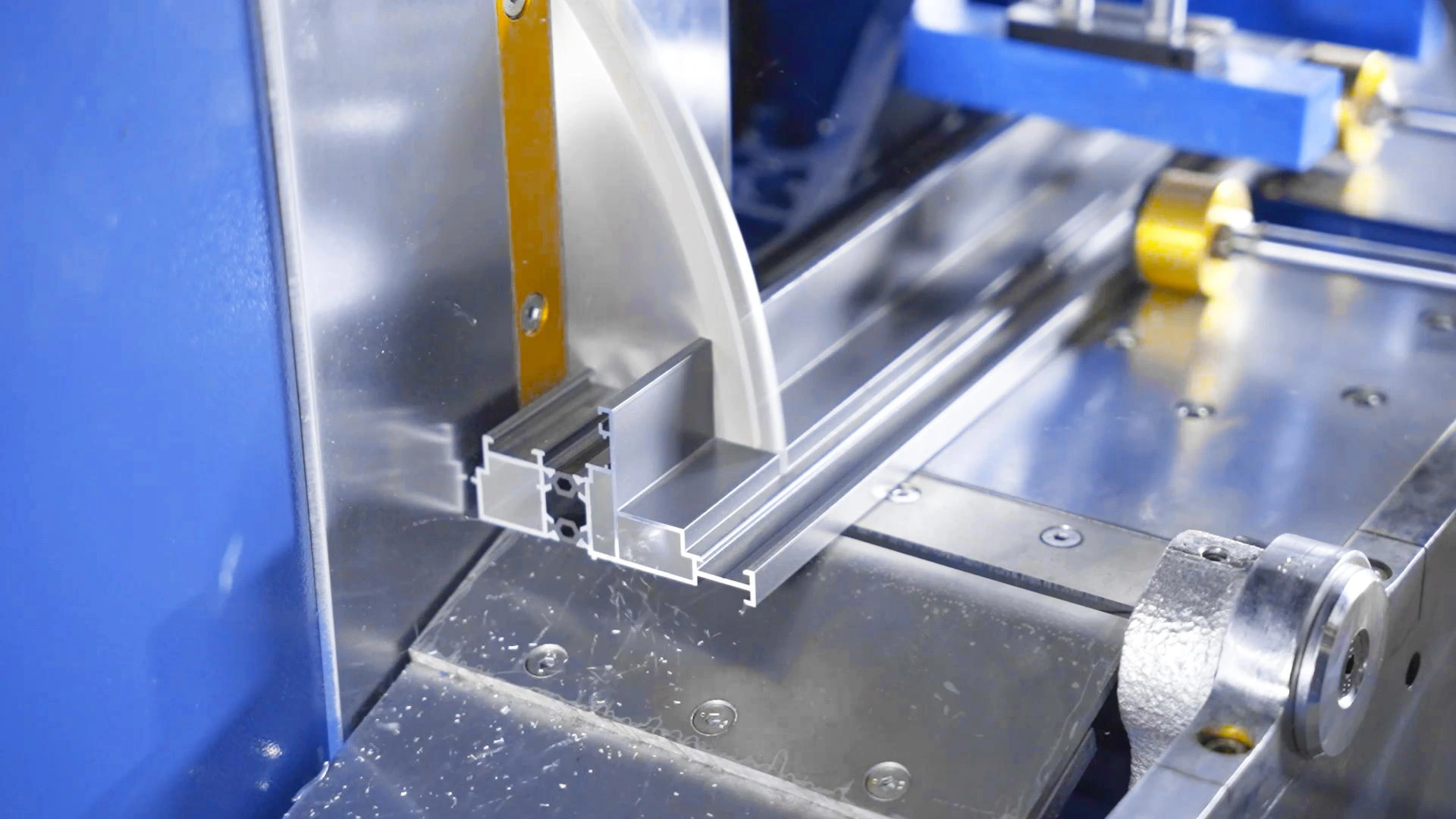

1. The machine is suitable for cutting various aluminum door and window profiles, curtain wall materials, as well as plastic profiles, meeting the needs of multiple industries.
2. It uses carbide tools, ensuring smooth cutting surfaces and enhancing the overall product quality.
3. The machine can be equipped with a digital display positioning system according to customer requirements, ensuring accurate and stable processing.
4. The saw blade features an upward feed design with fast return, making operation convenient and cutting highly efficient.
5. The saw blade angle can be adjusted to cut between 45° and 90°, providing flexibility for various cutting angles.
Heavy-duty Single Head Aluminium Cutting Machine Parameters
Cutting
Saw Blade Size | Ф500×Ф30mm |
Sawing Range | 230×120mm |
Rotational Speed | 2800r/min |
Cutting Angle | 90°, 45° |
Power
Input Power | 2.2kW |
Input Voltage | 380V/50Hz |
Air Pressure | 0.5~0.8MPa |
Machine
Machine Size | 1200×1300×1500mm |
Machine Weight | 750kg |
