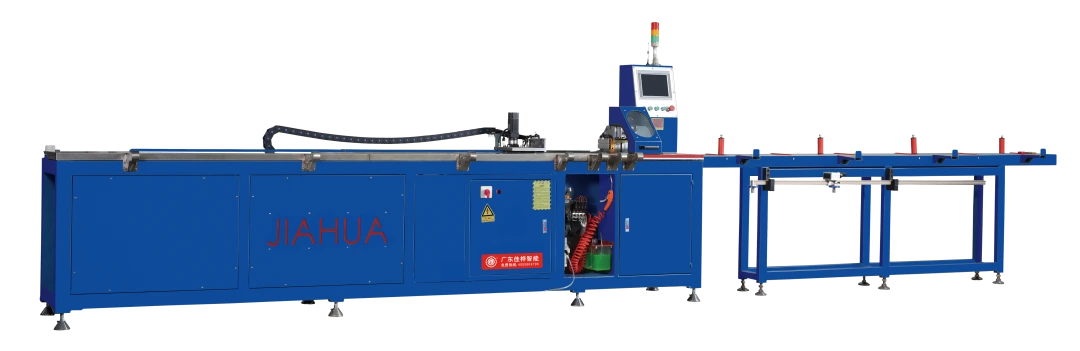

Single Head CNC Aluminium Cutting Machine with Bluetooth
CNC aluminium cutting machine Features
The JHWXS-100A with advanced Bluetooth wireless CNC technology, it provides an efficient and precise cutting solution.
1. Specially designed for cutting aluminum door and window profiles, as well as curtain wall materials, meeting diverse processing requirements.
2. The machine features imported square rails, ensuring high precision and long service life for stable and accurate cutting operations.
3. An air-liquid damping cylinder guarantees uniform blade feed, resulting in smooth motion and enhanced cutting quality.
4. The transmission system offers high accuracy and precise positioning, ensuring reliable and stable performance.
5. Advanced Bluetooth wireless CNC technology simplifies operation, allowing automatic feeding of profiles with varying specifications and dimensions.
6. Capable of precise 90-degree angle cuts, fulfilling various processing needs.
CNC aluminium cutting machine Parameters
Cutting
| Sawing Length | 120~3800mm |
| Saw Blade Size | Ф350×Ф30mm×140T |
| Sawing Range | 110×100mm |
| Rotational Speed | 2800r/min |
| Cutting Angle | 90° |
Power
| Input Power | 2.2kW |
| Input Voltage | 380V/50Hz |
| Air Pressure | 0.6~0.8MPa |
Machine
| Machine Size | 8500×1100×1700mm |
| Machine Weight | 900kg |
CNC aluminium cutting machine Details

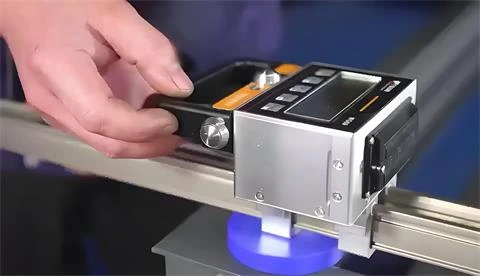

Wireless measurement system

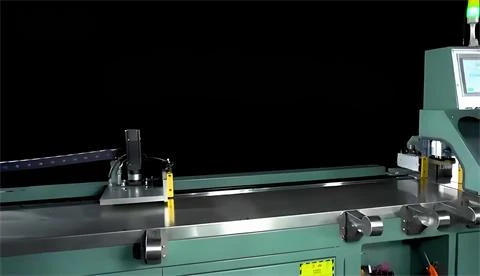

Servo positioning system

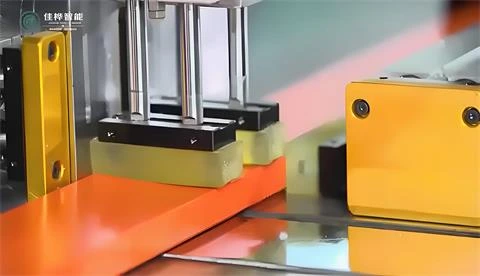

Automatic clamping system

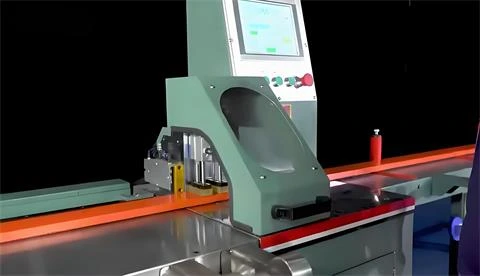

Safety shield

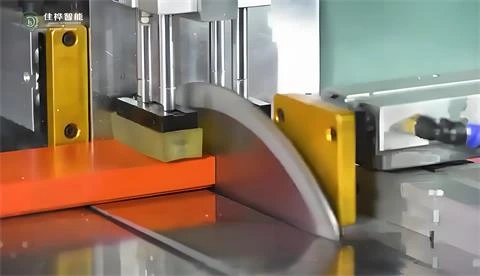

High-precision cutting system
